Description
no till seed planter 1st Products No Till Drill 12ft 3-Pt & Pull TypeHow To Get A Quote ***Online pricing not available*** How To Get A Quote: Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need! Option 2: (quickest response times) Step 1. Add the item to your cart Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen Step 3. Please tell us any info you think we would need to know Step 4.
How To Get A Quote
***Online pricing not available***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description

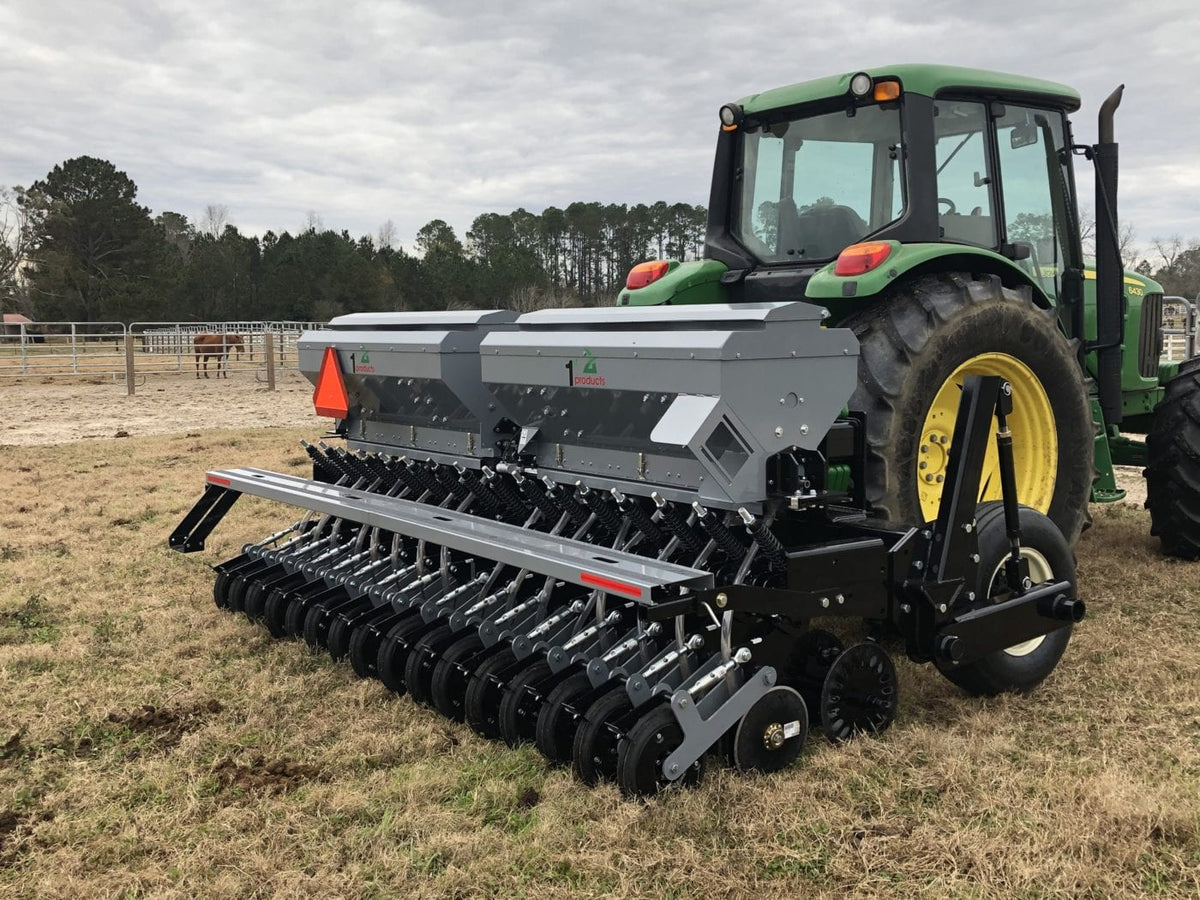

1st Products No Till Drill 12ft 3-Pt & Pull Type | Working Width 144" | Horsepower 90+ HP | For Tractors
DESCRIPTION
The 12ft 3PT/Pull Type No-Till Drill combines unmatched precision, durability, and versatility to meet diverse agricultural needs. Designed for both no-till and conventional planting, this drill is ideal for applications ranging from dense forests and food plots to expansive pastures. Its robust design and large seed capacity reduce downtime, while convenient features like the walk board and weight bracket enhance ease of operation. Perfect for farmers and land managers looking to increase productivity and achieve optimal planting results.
Key Features
- Drill Type: Supports No-Till and Conventional planting across large-scale applications.
- Metering System: Precision-engineered Slide Plate Control ensures consistent seeding accuracy.
- Working Width: 144" wide coverage—optimized for high-output seeding in expansive fields.
- Overall Width: 158" frame dimension provides full platform support and stable operation.
- Dry Weight: 4,800 lbs (excluding small box) for improved ground contact and minimal bounce.
- Hitch Compatibility: Dual-mode hitch—Cat. II/III 3-point and Pull Type adaptable to high-power tractors.
- Horsepower Requirement: Tractor rated 90+ HP required for optimal performance.
-
Seeding Configuration:
- Openers: 16
- Row Spacing: 9" for precise, uniform seed placement
- Depth Adjustment: 0"–3" for seed-to-soil customization across soil types
-
Seed Box Capacities:
- Main Box: 20.6 BU for bulk seed delivery
- Small Box: 7.6 BU for fine or specialty seeds
-
Machine Dimensions:
- Length: 94"
- Height: 64"
- Transport Height: 80" for safe clearance during transit
- Weight Bracket Capacity: Rated to support 1,000 lbs of counterbalance or ballast load
Detailed Specifications
| Specification | Details |
|---|---|
| Drill Type | No-till/Conventional |
| Meter System | Slide Plate Control |
| Overall Width | 158 in |
| Working Width | 144 in |
| Dry Weight | 4,800 lbs (No Small Box) |
| Hitch Type | Cat. II/III 3-point / Pull Type |
| Number of Openers | 16 |
| Row Spacing | 9 in |
| HP Required | 90+ |
| Machine Length | 94 in |
| Machine Height | 64 in |
| Transport Height | 80 in |
| Main Box | 20.6 BU |
| Small Box | 7.6 BU |
| Depth Range | 0”-3” |
| Weight Bracket | 1,000 lbs |
