bronson klapprad Santa Cruz Bronson 4.0 Carbon CC 27.5 - XT Kit

bronson klapprad Santa Cruz Bronson 4.0 Carbon CC 27.5 - XT Kit**Main Image for Illustration Purposes Only Image shows MX frame, 27. 5" Frame is shorter and as shown in additional images** All New Bronson MTB Frame The all new Bronson is designed for riders who thrive on steep, technical terrain and prioritize agility over sheer rolling speed. With influences from the latest MX bikes, the Bronson offers a finely balanced ride that is both intuitive and bold, pushing the limits of Santa Cruz's renowned VPP

**Main Image for Illustration Purposes Only - Image shows MX frame, 27.5" Frame is shorter and as shown in additional images**

All-New Bronson MTB Frame

The all-new Bronson is designed for riders who thrive on steep, technical terrain and prioritize agility over sheer rolling speed. With influences from the latest MX bikes, the Bronson offers a finely balanced ride that is both intuitive and bold, pushing the limits of Santa Cruz's renowned VPP suspension system.

Key Features:

• Optimized VPP Suspension:

  • Lower Link Design: The lower VPP link is positioned forward and low, optimizing anti-squat characteristics to deliver a plush, responsive ride. This setup provides an open, comfortable ride feel, even in challenging conditions.

• Size-Specific Chainstays:

  • Balanced Geometry: The Bronson features longer chainstays that are specifically matched to each frame size. This ensures that riders of all sizes experience the same balanced and stable geometry, enhancing control and confidence on the trails.

• Internal Cable Routing:

  • C Carbon vs. CC Carbon: On the C Carbon frames, the drivetrain cables are routed internally, providing a clean and sleek look. The CC Carbon frames further refine this with only the dropper post and rear brake cables routed internally, reducing cable clutter and enhancing the aesthetic.

Specifications:

Frame & Suspension:

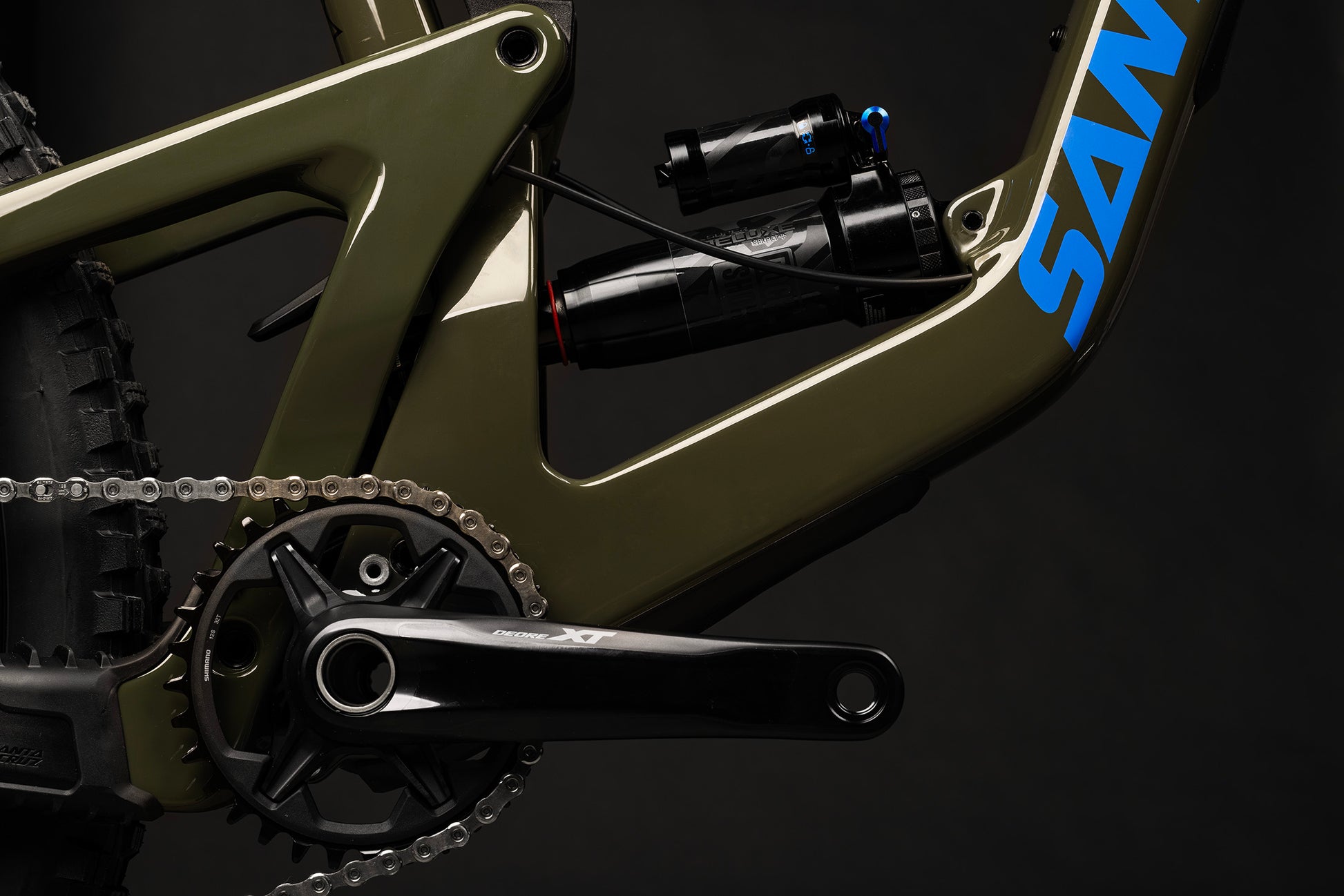

• Frame Model: Santa Cruz Bronson 4.0 Carbon CC
• Frame Size: X-Small
• Frame Color: Moss Green
• Rear Shock: RockShox Super Deluxe Select+
• Headset: Cane Creek Ten
• Spacers: Yes (2 x 10mm, 2 x 5mm)

Fork:

• Model: 2021 Fox 36, FLOAT, 160mm travel, Grip 2, 27.5", 15QRx110, 44mm Rake
• Finish: Shiny Black, No Logo

Wheels & Tires:

• Wheel Diameter: 27.5"
• Front Rim: RaceFace ARC30 Offset
• Rear Rim: RaceFace ARC30 Offset
• Front Hub: DT Swiss 240, Centerlock, 28H
• Rear Hub: DT Swiss 240 Microspline, Centerlock, 28H
• Spokes & Nipples: Sapim Black
• Front Tire: Maxxis Minion DHR II 3C MaxTerra EXO TR 27.5 x 2.4WT
• Rear Tire: Maxxis Minion DHR II 3C MaxTerra EXO TR 27.5 x 2.4WT
• Tube Setup: Tubeless

Brakes:

• Front Brake: Shimano XT BL-M8100/BR-M8120, 203mm Rotor
• Rear Brake: Shimano XT BL-M8100/BR-M8120, 203mm Rotor
• Disc Rotor Interface: Centerlock
• Disc Rotor Model: Shimano RT-MT800L

Cockpit:

• Stem: RaceFace Chester, 35mm bar clamp, 50mm length
• Handlebar: e13 Base, 780mm width, 20mm rise, 9º back sweep, 5º up sweep
• Grips: Santa Cruz House Grips, Black
• Spacers: Yes (2 x 10mm, 2 x 5mm)

Drivetrain:

• Shifters: Shimano SL-M8100, 12-speed iSpec
• Rear Derailleur: Shimano XT RD-M8100, 12-speed
• Crankset: Shimano XT FC-M8120, 170mm or 175mm, 32T chainring
• Bottom Bracket: Shimano BB-MT800
• Chain: Shimano XT CN-M8100
• Cassette: Shimano XT CS-M8100, 10-51T, 12-speed

Seat & Post:

• Seatpost: Fox Transfer SL, 100mm travel, 31.6mm diameter, Internal Routing
• Saddle: WTB Silverado Titanium

Additional Features:

• Pedals: Not Included
• Axles: Front 15mm / Rear 12mm, Boost Spacing
• Axle Spacing: Front 110mm / Rear 148mm Boost
• Brake Cables: Hydraulic
• Shift Cables: Jagwire

Conclusion:

The all-new Bronson is crafted for those who demand precision, agility, and adaptability from their trail bike. With its advanced VPP suspension, tailored geometry the Bronson is ready to tackle steep descents and technical terrain with confidence and style. Whether you’re navigating tricky trails or charging through bike parks, the Bronson delivers a ride that’s as bold as it is refined.
